soft cover Note Book- Edge Squaring-ES-91/ES-104

Manufacturer & Suppliers of Post Press Machineries

Technical specification

Description ES-91 ES-104
Book Size 91CM 105CM
Book Height(Min) 100MM 100MM
Book Spine Presser(Min-max) 1 To 10MM 1 To 10MM
Electrical load/Motor 2.25 kw/ 2.25 kw/
Electrical Supply 440VAC 50HZ 3 Ph. 440VAC 50HZ 3 Ph.
Weight (Aprx) 900kg (Aprx) 1100kg(Aprx)
Hydraulic Pressure(Maxi.) 4 TONS 6 TONS
Machine Size (In cm) L-155 X W-145 X H-110 L-155 X W-145 X H-110

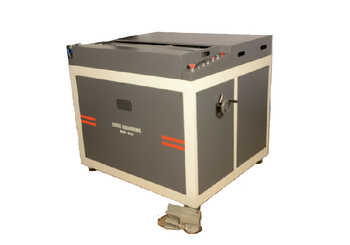

VALLAVA – Hydraulic Note Book Edge Squaring Machine.

VALLAVA, the Youngest Company in India with latest technology since 2012, experienced engineers, dedicated team, Innovative design and heavy duty construction makes sure of consistent high quality post press machinery manufacturers. Edge squaring machine is made with oil cooler and hard & geared product.

High Production Features:

High Quality Multi Product Edge Squaring Machine:

  • Two models : 91 cm / 105 cm width spine Edge Square value add finishing to Pinning / centre-stitched Note Books, thread-sewn refills for Diary & Hard case, Publications pinning & thread sewn books, Back to Back albums spine square finishing & Hard board Edge square finishing for wedding card edge foil product
  • This machine also can be used by Wedding card Manufacturers, before the edge foiling, the place of board edge grinding, this machine can be used for hard board edge square finishing by dust free operation with the variable hydraulic pressure
  • This Machine also can be used by Publication book binders, Diary Mfrs., dictionaries binders, perfect Binders & Hard Case Binders. Before pasting the binding spine cloth on thread sewn refills, required square finishing on thread-sewn book. This machine can be used for spine square without spoil / cut the threads. It consists of dynamic spine tuning adjustment system for the same purpose

Innovative Technology For High Productivity:

  • Easy & Fast Note Book spin / edge squaring machine with the facilities of Bottom ROLLERS pressing system with easy & sharp tuning adjustment to book spine pressure for different products, 10 Tons Hydraulic pressure for holding the books. The system can be operated in Manual or Auto modes. The Clamping stroke, clamp inching facility is provided for book thickness setting. The spine constant pressure setting is possible by precision of even ¼ mm. depending upon the note book cover / board thickness
  • The Power pack installed with oil cooler system to maintain cool oil temperature, it helps to continues production and long life of hydraulic components installed with the power pack
  • The clamp mouth does open up to 120 mm. Operator can feed up to 5 Note book at the time. Within 3/ process can be completed. Any untrained operator can achieve over 7000 to 9000 Excise Note Books per hour
