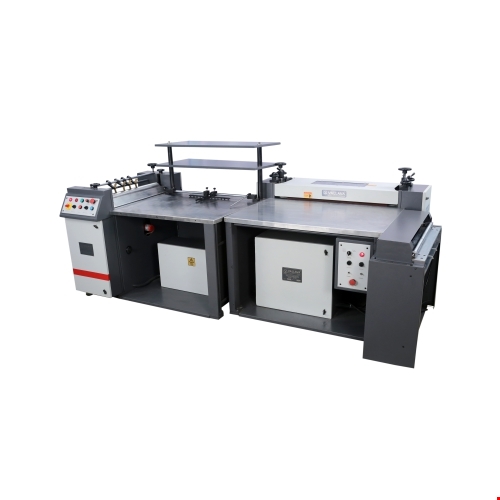

Hard Case Maker - Quikr



Technical specification

Model Name Quikr
Maximum Case Size 32"*18"
Minimum Case Size 3"*3"
Board Thickness 1 to 6 mm board
paper Thickness 60 to 300 gsm flexible paper.
Turning-in Flap Size 15 to 25mm (Depending upon the paper quality)
Production 300 to 400 case/hr*
Glue Hot & Cold(Optional)
Gluing System Paper Bottom
Man Power Three operators
Power 3 Phase,A.C Motor-1.75kw, Heater-2kw,440VAC,90 HZ
Gluinh Unit Dimension H-1200*L-1480*W-930mm
Folding Unit Dimension H-1000*L-1500*W-1600mm
Gluing Unit Dimension with Wooden Pack H-1200*L-1480*W-930mm
Folding unit Dimension with Wooden Pack H-1300*L-1550*W-1000mm
No.of Box Two


High Quality Multi-Use Hard Case Binding Machine.

Experienced engineers, dedicated team, Innovative Design and heavy duty construction make sure of consistent high quality PLC based multi-product Hard Case Binding Machine QUIKR- This modular SINGLE BRUSH TURNING cum PNEUMATIC TURNING unit machine. EXCELLA- This modular DOUBLE BRUSH TURNING cum PNEUMATIC TURNING unit machine. Are suitable for book binders, printers and bulk stationery manufacturers like Box File Mfrs., Notebook Mfrs., and Diary Mfrs., etc. both the models are also designed for variety of case binding jobs as demanded by the market.

Modular Binding System

Vallava JETBOUND model casing-in with modular design and a range of accessories ensure maximum flexibility and productivity. Casing-in comes in two variations (i) Four side fold in Pneumatic system or (ii) Four side fold in brush turning unit or.(iii) Two side fold in Pneumatic system and two side fold in brush turning unit.(iv)? Only calendaring shall be possible by setting on single direction mode while inner pasting(v) Special programs made for paper box Mfrs.

Reliable and Proven Gluing System

20 Inch long in QUIKR and 40 Inch long in EXCELLA Stainless Steel glue rollers are used for proper constant bottom glue application. The machine has high speed paper feeding system and single operator gluing unit in QUIKR and Two operator gluing unit in EXCELLA. Operator can operate the machine without touching the glue and this will protect the case from dust accumulation. Cartridge type glue tank with separate hot water tank is provided. Precise control of paper releasing tension blades and high speed run helps in avoiding the paper stuck/roll in the glue rollers. It has the maximum high speed paper feed system of this kind in the market at present.

High Speed Single Brush Turning System (QUIKR)

The single brush turning unit completes the turning in for all four sides (by passing two times) Rollers and brush will rotate to fold the flap within few seconds by reverse and forward system. The PLC based reverse forward rotating facility is provided to the silicon rollers and brush. There is a PLC technology for rapid high speed operation. Alternately manufacturing of (inner pasting) Files and Table Top calendars, conveyors and all rollers shall operate in single direction by program.
