Model Name:MULTIMAX
Electricity : Three Phase or Single Phase
Power : 440 V AC Motor, 1.5 KW.
Weight: 700kgs
Machine Size : H- 1170, W- 1200, L- 1800 mm

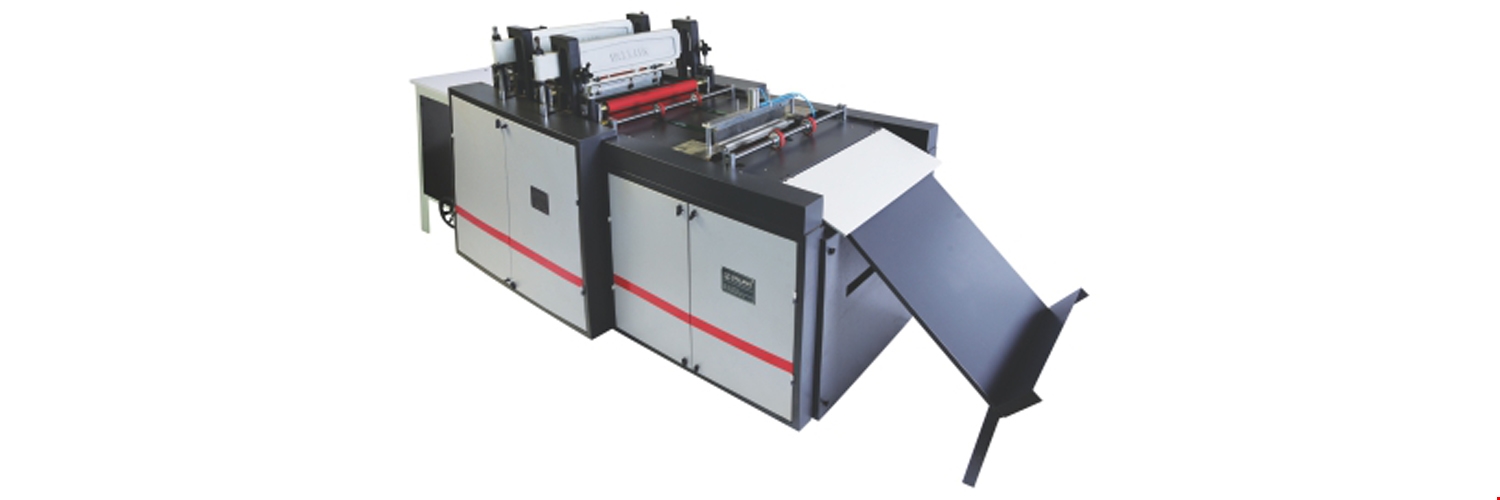

FILE MASTER MODEL : Multi- Max
FILE MASTER MODEL : Multi- Max
Double Station File Master
Can produce any type of file (Box File, Spring File, Office File & D-Ring File)
Operation by servo motor for 1 to 7 file creasing as per the file model.
Maximum 100 different types of files can be saved in the recipe for repeat operation
First station can punch all required hole punch in box file and office file and automatically
will move to another station for automatic creasing
3 rd folding section can fold the file where reverse creased and finally below two does
installed for punching final 4 holes for Cobra spring files and 8 holes for Office files (In Multimax Semi)
FILE MASTER MACHINE
FILE MASTER MACHINE
Vallava with its range of solution is optimally positioned for the current and future
requirement of the File finishing segment particularly for the manufacture of highly
finished bulk paper stationery mfg. segment which also offers competitive advantages in
volume production, which satisfies the growing requirement of the manufacturers of
branded stationery in the form of efficient consumer response. Vallava Multimax Model is designed for easy manufacturing of files.
Features
Features
* All accurate hard material dies with male/female punching creasing system comes with a
longer shell life
* Joint forming presser adjustment for constant file quality finishing
* Heavy constructed Magnetic clutch brake machine
* Speciality- This machine can punch all hole punching for box file, spring file, office file and D
ring file.
*Speciality- This machine can emboss round hole and rado ring at the time
* Speciality- The machine can emboss both the corner strip in the Box file at the same time
Inter Changeable Long Life Dies
Inter Changeable Long Life Dies
1)Dies For Box File Making:
All hole Punching Die (With Rado)
All hole Punching die (Without Rado)
Variable adjustment creasing die
Round hole embossing die
Duel die of round and rado embossing
Duel corner strip embossing die
2) Dies for Online File Master Model- Multi Max:
All hole punching die for online machine (With Rado)
All hole punching die for online machine (Without Rado)
3)Dies for Cobra (Spring) File and Folders:
Cobra File all hole punching die
Step gauge for file creasing (6 or 7 steps)
Single round corner cutting die
4)Dies for Online File Master Model- Multi Max:
All hole punching die for online machine (With Rado)
5)Exam Pad Making Die:
Exam Pad hole punching die (Small & Big Size Clip)
Exam Pad Clip fitting and Embossing die (Small & Big Size Clip)
6)Book Binding Dies:
Spiral book punching die Length 17” (As per customer request hole size)
Wiro book punching die Length 17” (As per customer request hole size)
Wiro Closer
