Hard Case Maker- PREMIER PLUS


Manufacturer & Suppliers of Post Press Machineries

Technical specification

Model Name Premier Plus
Maximum Case Size 32"*22"
Minimum Case Size 3"*3"
Board Thickness 1 to 6 mm board
paper Thickness 60 to 300gsm flexible paper.
Turning-in Flap Size 15 to 25mm (Depending upon the paper quality)
Production 300 to 400 case/hr*
Glue Hot & Cold(Optional)
Gluing System Paper Bottom
Man Power Four operators
Power Total 1hp,3 Phase,Heater-2kw-A.C.Motor-1025kw,440VAC
Dimension H-1300*L-2700*W-1550mm
Dimension with Wooden Pack H-1400*L-1350*W-1600mm
Machine Weight 1200Kg.
No.of Box Two

Will vary depending upon the operator skill, Paper & Board quality.

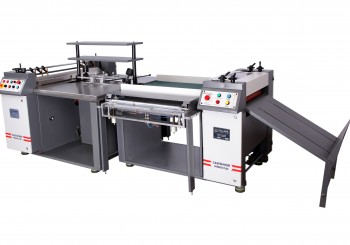

VALLAVA – Hard case Maker Machine Model-PREMIER PLUS.

Hard Case Maker Machine Technical Specification.

Economic High quality Multi-use Hard Case Binding Machine:

Experienced engineers, dedicated team, Innovative design and heavy duty construction makes sure of consistent high quality multi product hard case binding machine at economic costs. This Premier Plus model is designed for doubling the production capacity compared to our premier model. Premier Plus retains all the beneficial features of premier model. This semi-automatic machine is made using rust resistance stainless steel glue rollers & working table for smooth & neat working.

Flexible conversion for high productivity:

Easy and fast hard case binding (Up to 400 Cases/ Hour) paper bottom gluing machine * Variable speed gluing system *Adjustable Glue thickness system *Adjustable Gauge unit & Paper table *Adjustable double Pneumatic turning unit (Programmable 1-10 second for variety paper and board material) *Heavy duty Silicon rollers with conveyor installed for pressing / calendaring for dust free & air bubble free finishing, all four operator can comfortably sit & work, because, there is no pedal operating system.

Valuable options for variety of operations demands:

Main on /off red light indicator *Glue heating cut-off indicator *Water heating degree tuner *Variable speed glue rollers speed tuner *Emergency OFF bush buttons to both glue and calendaring units *Inching & reverse forwarding facility for both gluing unit and calendaring rollers with conveyor *Programmable Pneumatic turning-in system by variable timing mode is there to bind maximum thickness of papers & Boards.

Reliable and Proven Gluing system:

40 Inch long Stainless Steel glue rollers are used for proper constant bottom glue application. The machine has high speed paper feeding system & two operator gluing units. Operator shall operate the machine without touching the glue and this shall protect the case from dust accumulation. Cartridge type glue tank with separate hot water tank is provided. Precise control of paper releasing tension blades for proper paper release and high speed run helps in avoiding the paper stuck / roll in the glue rollers. This is the maximum high speed paper feed system of this kind in the market at present.

Double High-Tech Pneumatic Turning System:

Two turning units, it suits for two operator gluing, operate the pneumatic in nature and does not have pedal system. The operator can program the stroke timing by precision of seconds. This will be used for holding necessary time of turning bar movement, to hold the glued maximum gsm paper, Rexene or cloth, and turning-in to paste by proper manner. Adjustment is provided to process hard boards up to 6 MM thickness with UNIQUE LOCKING SYSTEM.

Unique Dust-free Calendaring unit with conveyor system:

Quality Silicon rollers are used in the calendaring unit, which can be cleaned easily. Fine rollers control knob-cum-locker is provided for constant disengagement of upper rollers. This is to ensure that case is free from glue and dust on front side especially when using costly wrappers like white paper, wedding card products, quality binding cloths etc. Also provided conveyor for both pneumatic turning operators to feed continuously to produce fast, It is a major requirement of Hard Case Binder today.

Machine Users.

Publication Book Mfrs., Note Book Mfrs., Bulk Stationery Mfrs, Box File Mfrs., Product Album Mfrs., Paper Box Mfrs., Wedding Card Mfrs. Exam Pad Mfrs., Wedding Album Mfrs., Book Binding units, and Offset Printers etc.

PROUCTS.

Diaries, Registers, Hard Case Books, Hard Case Note Books, Wedding Albums, Product Albums, Exam Pads, Box Files, Paper Box base and Wedding Invitation cards etc.
