Products

File Master MULTIMax - Semi


Technical specification

Model Name             Multi-Max   Multi-max(semi)
Electricity Three Phase or Single Phase   Three Phase
Power 440 VAC Motor 1.5 Kw   440 VAC Motor 1.5 Kw
Weight 700kgs                                                      1000kgs
Machine Size  H-1170,W-1200,L-1800mm   H-1170,W-1200,L-1900mm
Model Name:MULTIMAX SEMI
Electricity :Three Phase
Power: 440 V A.C., 1.5KW
Weight:1000kgs
Machine Size:H- 1170, W- 1200, L- 1900 mm

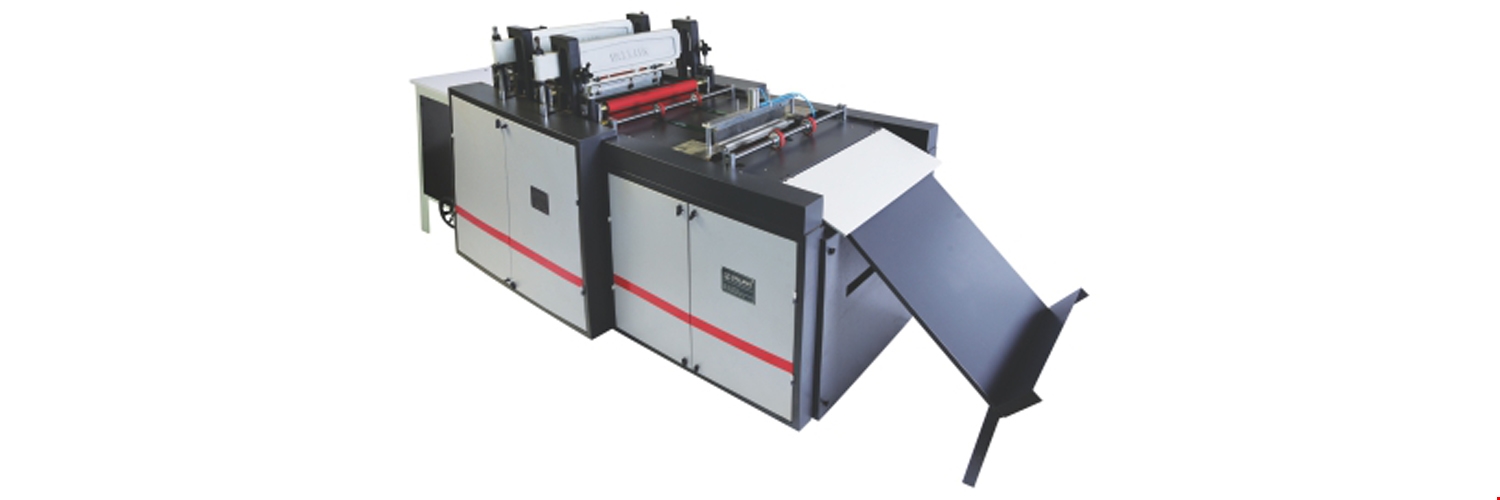

FILE MASTER MODEL : MultiMax (Semi)

                 Double Station File Master

Can produce any type of file (Box File, Spring File, Office File & D-Ring File)
Operation by servo motor for 1 to 7 file creasing as per the file model.
Maximum 100 different types of files can be saved in the recipe for repeat operation
First station can punch all required hole punch in box file and office file and automatically will move to another station for automatic creasing
3 rd folding section can fold the file where reverse creased and finally below two does installed for punching final 4 holes for Cobra spring files and 8 holes for Office files (In Multimax Semi)

FILE MASTER MACHINE
Vallava with its range of solution, is optimally positioned for the current and future requirement of the File finishing segment particularly for the manufacture of highly finished bulk paper stationery mfg. segment which also offers competitive advantages in volume production, which satisfies the growing requirement of the manufacturers of branded stationery in the form of efficient consumer response. Vallava Multimax Model is designed for easy manufacturing of files.

Features
* All accurate hard material dies with male/female punching creasing system comes with a longer shell life
* Joint forming presser adjustment for constant file quality finishing
* Heavy constructed Magnetic clutch brake machine
* Speciality- This machine can punch all hole punching for box file, spring file, office file and D ring file.
*Speciality- This machine can emboss round hole and rado ring at the time
* Speciality- The machine can emboss both the corner strip in the Box file at the same time

Inter Changeable Long Life Dies
1)Dies For Box File Making:
a)All hole Punching Die (With Rado)
b) All hole Punching die (Without Rado)
c) Variable adjustment creasing die
d)Round hole embossing die
e)Duel die of round and rado embossing
f) Duel corner strip embossing die
2) Dies for Online File Master Model- Multi Max:
a) All hole punching die for online machine (With Rado)
b) All hole punching die for online machine (Without Rado)
3)Dies for Cobra (Spring) File and Folders:
a)Cobra File all hole punching die
b) Step gauge for file creasing (6 or 7 steps)
c)Single round corner cutting die
4)Dies for Online File Master Model- Multi Max:
a)All hole punching die for online machine (With Rado)
b)Exam Pad Making Die:

a)Exam Pad hole punching die (Small & Big Size Clip)
b) Exam Pad Clip fitting and Embossing die (Small & Big Size Clip)

Book Binding Dies:
a) Spiral book punching die Length 17” (As per customer request hole size)
b) Wiro book punching die Length 17” (As per customer request hole size)
c) Wiro Closer
